CCQ-A pneumatic ultra high vacuum plug valve

CCQ-A pneumatic ultra high vacuum plug valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

CCQ-A series pneumatic ultra-high vacuum plug-in valve uses compressed air as power, changes the direction of air passage through electromagnetic directional valve, drives cylinder piston, drives valve plate to move up and down, realizes valve opening or closing, thus achieves the purpose of connecting or cutting off air flow in ultra-high vacuum system.

CCQ-A series pneumatic ultra-high vacuum plug-in valve is suitable for working medium of clean air and non-corrosive gas.

Main technical performance

適用范圍(Pa)
105~1.3x10-7
閥門漏率(Pa.L/S)
DN≤200為≤1.3x10-7
DN≥250為≤6.7x10-7
閥門烘烤溫度(℃)
≤150(除傳動裝置外)
開閥時閥板兩側壓力差(Pa)
≤2.7x103
氣源壓力(MPa)
0.4~0.6
電源電壓
標準出廠:AC220V/50Hz
特殊指定:AC110V;DC24V;DC12V等
信號反饋
標準出廠:不帶反饋信號
特殊指定:微動開關DC/AC5~240V

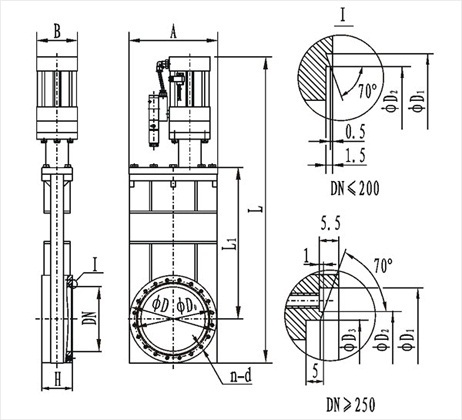

Main shape connection dimensions
型號
通徑(DN)
ΦD
ΦD0
ΦD1
ΦD2
ΦD3
H
A
n-d
L
L1
B
法蘭標準
CCQ-50A
50
89
72.4
61.6
55.6
/
60
91
8-M8
515
153
62
GB/T6071
CCQ-63A
63
114
92.1
82.6
76.6
/
65
105
8-M8
590
180
62
CCQ-80A
80
130
110
99
93
/
65
130
16-M8
608
220
75
CCQ-100A
100
152
130.2
120.7
114.7
/
70
152
16-M8
655
267
94
CCQ-150A
150
202
181
171.5
165.5
/
70
202
20-M8
707
350
94
CCQ-200A
200
254
231.8
222.3
216.6
/
80
251
24-M8
806
426
112
CCQ-250A
250
314
288
308
275
271
85
300
24-M10
1125
550
112
JB5278
CCQ-300A
300
365
338
353
323
318
90
352
32-M10
1195
613
140
/

The best quality, first-class service Qigao creates more value for you!

"Qigao Valve" expects to continuously improve service quality and strive for excellence. "Sincere service" is the eternal theme of "Qigao". "Qigao" strictly followsIS09001-2000 Quality system certification requirements, strict quality control, responsibility to people, to ensure the healthy operation of production, sales and service. Strengthen communication with users and provide quality products to our customers with perfection and perfect service. Hereby our factory makes the following commitments:

Product Standards:

Products in strict accordance with ChinaGB、HG Standard and USAPISuch as standard design, manufacturing, acceptance. The hardness of the sealing surface meets the requirements of the state and the width exceeds the national standard.

pre-sale service:

Product introduction, technical exchange, non-standard product design, troubleshooting。

Sale service:

A trustworthy contract guarantees timely delivery and keeps in touch with customers. For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" brand product quality period is from the factory12In the month, the implementation of the "three guarantees" service (return, replacement, warranty).

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions, so as to further improve product quality.

3、Respond quickly to the quality of user complaints, after-sales service personnel rushed to the scene in 24-36 hours (48 hours outside the province).

4、For after-sales service, users are required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of Qigao.

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us in advance to tell the required valve model, specification, quantity, delivery time and location, and timely transfer to the factory account according to the total 30% deposit or full payment. The rest of the payment is pending. Import before shipment to arrange delivery in time.



Order Process:

1、Customer purchase list fax to021-33872143,Or call us 021-33872141

2、Receive customer purchase list, provide valve model selection and quotation (price list)。

3、Specific agreement: delivery date, special requirements, etc.。

download Google:

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us first to tell the required valve model, specifications, quantity, delivery time and location, and press the total30%The deposit or full payment will be remitted to our factory account in time., The rest of the payment will be remitted before shipment to arrange delivery in time.。

Sale service:

Trustworthy contract, guarantee timely delivery, keep in touch with customers at any time。

For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" product quality period is from the factory12Month, practiceThree packsService (return, replacement, warranty)。

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions.,
In order to further improve product quality。

3、Respond quickly to the quality of user complaints, after-sales service personnel24-36Hours (outside the province48Hour) rushed to the scene。

4、For after-sales service, the user is required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of “Qigao”.。

statement

  1. All text, data and pictures in this article are for reference only.CCQ-A pneumatic ultra high vacuum plug valvePlease contact us at 4000-700-665 for details of performance, size and price.
  2. If there is no explanation, this article is original, reprint, please indicate the address of this article, thank you for your cooperation!
