GD-J (b) manual high vacuum baffle valve
- sell：021-32051999
- sell：021-32050777
- fax：021-66099555
Details
- Product Introduction
- Service Promise
- Ordering Process
GD-J(b) series manual high vacuum flapper valve (also known as angle valve) is one of the important components in the vacuum system. The drive parts of the valve adopt threaded structure, depend on manual rotation of hand wheel, open and close valve plate.
GD-J (b) series manual high vacuum baffle valves are suitable for medium and non corrosive gases.
Main technical performance
適用范圍(Pa) | 2x105～1.3x10-6 |
閥門漏率(Pa.L/S) | ≤1.3x10-7 |
適用溫度（℃） | -25～+40 |
法蘭標準 | GB4982 |
安裝位置 | 任意 |

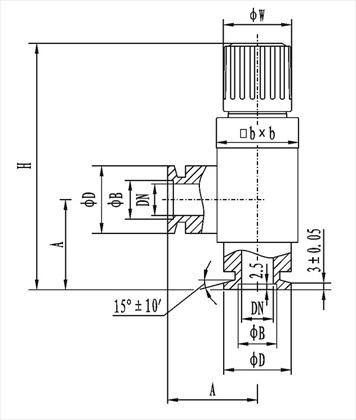

 型系列手動高真空擋板閥結構圖.jpg)
型號 | 通徑(DN) | ΦD | ΦB | ΦW | H | A | bxb |
GD-J10(b)/KF | 10 | 30 | 12.2 | 36 | 116 | 40 | 37x37 |
GD-J16(b)/KF | 16 | 30 | 17.2 | 36 | 116 | 40 | 37x37 |
GD-J25(b)/KF | 25 | 40 | 26.2 | 50 | 144 | 50 | 61x61 |
GD-J40(b)/KF | 40 | 55 | 41.2 | 56 | 174 | 65 | 81x81 |
