YJ41H antibiotic stop valve

YJ41H antibiotic stop valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

YJ41H antibiotic globe valve is mainly used in bio-fermentation, pharmaceutical and beer fermentation, amino acid fermentation, bio-pesticide fermentation, bio-fertilizer fermentation, various antibiotic fermentation, biological, biochemical, chemical and pharmaceutical materials, water, steam, cold control and other fields, the bottom can be opened according to customer needs, high-temperature resistance. The service life is long and no dead ends reach zero leakage level.


Product features


1., it has strong bactericidal and detoxification function to prevent bacteria from being infected.


2. the gasket is made of high temperature resistant PTFE composite material. (maximum temperature up to 120 degrees Celsius)


3. the gasket, the middle sealing ring of the valve body and the stem packing are all made of high quality PTFE material. Long life and corrosion resistance to ensure no internal and external leakage.


4. streamlined flow path makes the pressure loss small.


5. the gasket can be replaced, the disassembly is more convenient and the maintenance cost is low.


Design and manufacturing standards for antibiotic shut-off valves


Design and manufacture: GB/T12235


Flange size: JB/T79.1


Structure length: GB/T12221


Inspection and testing: JB/T9092


Main performance specifications for antibiotic shut-off valves


公稱壓力
1.6 MPa
試驗壓力
強度試驗
2.4 MPa
密封試驗
1.76 MPa
上密封試驗
1.76 MPa
氣密封試驗
0.6 MPa
MAX工作溫度
120 ℃
適用介質
水、蒸汽、食品等

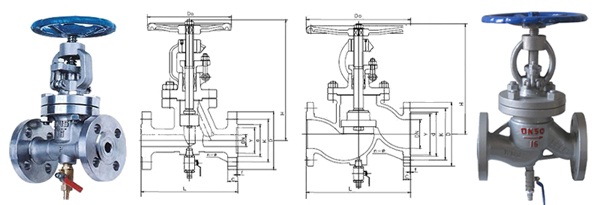

Main dimensions of antibiotic shut-off valves


公稱壓力
PN(MPa)
公稱通徑
DN(mm)
尺寸(mm)
L
D
K
d
Y
C
f
n-φ
H
D0
1.6
10
130
90
60
40
-
14
2
4-14
163
100
15
130
95
65
45
-
14
2
4-14
163
100
20
150
105
75
55
-
14
2
4-14
165
100
25
160
115
85
65
-
14
2
4-14
198
125
32
180
135
100
78
-
16
2
4-18
225
160
40
200
145
110
85
-
16
3
4-18
330
200
50
230
160
125
100
-
16
3
4-18
350
240
65
290
180
145
120
-
18
3
4-18
400
280
80
310
195
160
135
-
20
3
8-18
405
280
100
350
215
180
155
-
20
3
8-18
415
320
125
400
245
210
185
-
22
3
8-18
460
360
150
480
280
240
210
-
24
3
8-23
510
400
200
600
335
295
265
-
26
3
14-23
710
400
2.5
10
130
90
60
40
-
16
2
4-14
163
100
15
130
95
65
45
-
16
2
4-14
163
100
20
150
105
75
55
-
16
2
4-14
165
100
25
160
115
85
65
-
16
2
4-14
198
125
32
180
135
100
78
-
18
2
4-18
225
160
40
200
145
110
85
-
18
3
4-18
330
200
50
230
160
125
100
-
20
3
4-18
350
240
65
290
180
145
120
-
22
3
8-18
400
280
80
310
195
160
135
-
22
3
8-18
405
280
100
350
230
190
160
-
24
3
8-23
415
320
125
400
270
220
188
28
3
8-25
460
360

150
480
300
250
218
-
30
3
8-25
510
400
200
600
360
310
278
-
34
3
12-25
710
400


The best quality, first-class service Qigao creates more value for you!

"Qigao Valve" expects to continuously improve service quality and strive for excellence. "Sincere service" is the eternal theme of "Qigao". "Qigao" strictly followsIS09001-2000 Quality system certification requirements, strict quality control, responsibility to people, to ensure the healthy operation of production, sales and service. Strengthen communication with users and provide quality products to our customers with perfection and perfect service. Hereby our factory makes the following commitments:

Product Standards:

Products in strict accordance with ChinaGB、HG Standard and USAPISuch as standard design, manufacturing, acceptance. The hardness of the sealing surface meets the requirements of the state and the width exceeds the national standard.

pre-sale service:

Product introduction, technical exchange, non-standard product design, troubleshooting。

Sale service:

A trustworthy contract guarantees timely delivery and keeps in touch with customers. For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" brand product quality period is from the factory12In the month, the implementation of the "three guarantees" service (return, replacement, warranty).

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions, so as to further improve product quality.

3、Respond quickly to the quality of user complaints, after-sales service personnel rushed to the scene in 24-36 hours (48 hours outside the province).

4、For after-sales service, users are required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of Qigao.

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us in advance to tell the required valve model, specification, quantity, delivery time and location, and timely transfer to the factory account according to the total 30% deposit or full payment. The rest of the payment is pending. Import before shipment to arrange delivery in time.



Order Process:

1、Customer purchase list fax to021-33872143,Or call us 021-33872141

2、Receive customer purchase list, provide valve model selection and quotation (price list)。

3、Specific agreement: delivery date, special requirements, etc.。

download Google:

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us first to tell the required valve model, specifications, quantity, delivery time and location, and press the total30%The deposit or full payment will be remitted to our factory account in time., The rest of the payment will be remitted before shipment to arrange delivery in time.。

Sale service:

Trustworthy contract, guarantee timely delivery, keep in touch with customers at any time。

For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" product quality period is from the factory12Month, practiceThree packsService (return, replacement, warranty)。

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions.,
In order to further improve product quality。

3、Respond quickly to the quality of user complaints, after-sales service personnel24-36Hours (outside the province48Hour) rushed to the scene。

4、For after-sales service, the user is required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of “Qigao”.。

statement

  1. All text, data and pictures in this article are for reference only.YJ41H antibiotic stop valvePlease contact us at 4000-700-665 for details of performance, size and price.
  2. If there is no explanation, this article is original, reprint, please indicate the address of this article, thank you for your cooperation!
