FJ41 throttle stop vent valve

FJ41 throttle stop vent valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

FJ41 type PN16~PN160 throttle cut-off valve is widely used as closed circuit device in oil, natural gas, gas, liquefied petroleum gas and pipelines of oil refining, airport, chemical industry, oil and gas storage and transportation.




Features of throttle stop valve


1. The valve is a new type of throttling, cut-off and emptying product. The valve uses cage-shaped labyrinth to throttle. It has the characteristics of multi-stage throttling effect, obvious throttling effect, reliable sealing and convenient operation and maintenance.


2. The valve adopts double seal (hard and soft seal) to make the seal reliable, the carbide cover can be more resistant to air erosion and wear resistance, and the double seal can achieve zero leakage under the condition of high pressure gas medium. Long service life of valves


3. The sealing surface of the valve seat is taper sealed, which is good for the valve itself to clean the dirt attached to the sealing surface.


4. The valve disc is equipped with a balancing hole and a piston seal, which ensures stable operation under the condition of opening/closing full differential pressure, easy opening and flexible opening and small opening/closing torque.


5. The throttle cut-off valve and the double-acting throttle valve have the function of throttle and cut-off (sealing is zero leakage) at the same time, the throttle part is separated from the sealing surface, so as to reduce the erosion of the airflow to the seal.


6. Dual-acting throttle globe valve also has multi-stage throttle function, throttle pressure difference is large, can be applied to high pressure throttle and cut-off.


7, the packing uses the V shape packing structure with the self sealing ability, does not need to adjust, opens and closes extremely lightly. There is an auxiliary seal oil injection structure in the stuffing box, which ensures reliable sealing performance of the valve packing.


8, the valve can be on-line maintenance, pipeline can replace a series of vulnerable parts such as fillers under pressure.


9. The valve has a larger drain hole at the bottom of the valve. When necessary, the valve must be opened to clean the dirt inside the valve.




Performance parameters of throttle stop vent valve


型號
工作壓力(MPa)
適用溫度(℃)
適用介質
閥體材料
FJ41-16
1.6
≤350
水、蒸汽、油品等
碳鋼
FJ41-25
2.5
FJ41-40
4.0
FJ41-64
6.4
FJ41-100
10.0
FJ41-160
16.0

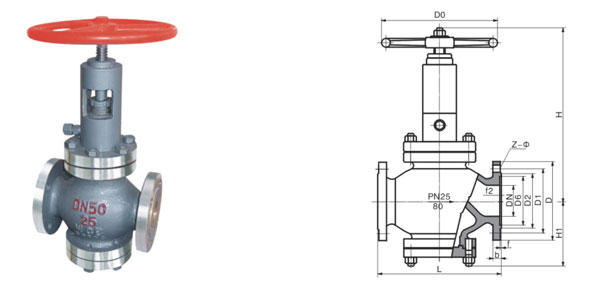

Main dimensions of throttle stop valve


PN
(MPa)
DN
(mm)
尺寸(mm)
重量(kg)
L
H
H1
D0
1.6
25
216
243
86
180
17
40
230
265
108
250
24
50
230
346
115
250
27
80
310
409
146
300
52
100
350
433
163
300
60
150
480
521
202
350
125
200
600
594
292
350
165
250
730
621
355
400
285
2.5
25
216
243
86
180
17
40
230
265
108
250
24
50
230
346
115
250
27
80
310
409
146
300
55
100
350
433
163
300
66
150
480
521
202
350
140
200
600
594
292
350
180
250
730
621
355
400
310
4.0
25
216
243
86
180
20
40
230
265
108
250
29
50
230
346
115
250
32
80
310
409
146
300
67
100
350
433
163
300
80
150
480
521
202
350
168
200
600
594
292
350
215
250
730
621
355
400
372



PN
(MPa)
DN
(mm)
尺寸(mm)
重量(kg)
L
H
H1
D0
6.4
25
216
243
86
180
20
40
230
265
108
250
29
50
230
346
115
250
32
80
310
409
146
300
67
100
350
433
163
300
80
150
480
521
202
350
168
200
600
594
292
350
215
250
730
621
355
400
372
10.0
25
230
245
78
200
29
40
260
265
106
250
42
50
300
287
110
300
55
80
380
409
152
350
95
100
430
433
169
350
120
150
559
531
225
400
240
200
660
709
321
500
310
250
787
817
399
500
530
16.0
25
230
215
78
200
35
40
260
265
105
250
50
50
300
237
110
300
65
80
390
414
155
350
116
100
450
440
175
350
145


The best quality, first-class service Qigao creates more value for you!

"Qigao Valve" expects to continuously improve service quality and strive for excellence. "Sincere service" is the eternal theme of "Qigao". "Qigao" strictly followsIS09001-2000 Quality system certification requirements, strict quality control, responsibility to people, to ensure the healthy operation of production, sales and service. Strengthen communication with users and provide quality products to our customers with perfection and perfect service. Hereby our factory makes the following commitments:

Product Standards:

Products in strict accordance with ChinaGB、HG Standard and USAPISuch as standard design, manufacturing, acceptance. The hardness of the sealing surface meets the requirements of the state and the width exceeds the national standard.

pre-sale service:

Product introduction, technical exchange, non-standard product design, troubleshooting。

Sale service:

A trustworthy contract guarantees timely delivery and keeps in touch with customers. For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" brand product quality period is from the factory12In the month, the implementation of the "three guarantees" service (return, replacement, warranty).

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions, so as to further improve product quality.

3、Respond quickly to the quality of user complaints, after-sales service personnel rushed to the scene in 24-36 hours (48 hours outside the province).

4、For after-sales service, users are required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of Qigao.

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us in advance to tell the required valve model, specification, quantity, delivery time and location, and timely transfer to the factory account according to the total 30% deposit or full payment. The rest of the payment is pending. Import before shipment to arrange delivery in time.



Order Process:

1、Customer purchase list fax to021-33872143,Or call us 021-33872141

2、Receive customer purchase list, provide valve model selection and quotation (price list)。

3、Specific agreement: delivery date, special requirements, etc.。

download Google:

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us first to tell the required valve model, specifications, quantity, delivery time and location, and press the total30%The deposit or full payment will be remitted to our factory account in time., The rest of the payment will be remitted before shipment to arrange delivery in time.。

Sale service:

Trustworthy contract, guarantee timely delivery, keep in touch with customers at any time。

For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" product quality period is from the factory12Month, practiceThree packsService (return, replacement, warranty)。

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions.,
In order to further improve product quality。

3、Respond quickly to the quality of user complaints, after-sales service personnel24-36Hours (outside the province48Hour) rushed to the scene。

4、For after-sales service, the user is required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of “Qigao”.。

statement

  1. All text, data and pictures in this article are for reference only.FJ41 throttle stop vent valvePlease contact us at 4000-700-665 for details of performance, size and price.
  2. If there is no explanation, this article is original, reprint, please indicate the address of this article, thank you for your cooperation!
