WJ44H German standard right angle BELLOWS GLOBE VALVE

WJ44H German standard right angle BELLOWS GLOBE VALVE
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

WJ44H German standard right-angle bellows globe valve is suitable for cutting off or connecting pipeline medium in various working conditions of petroleum, chemical, pharmaceutical, chemical fertilizer and electric power industry with nominal pressure PN1.6-16MPa and working temperature-29-350 C.


Structural characteristics of German standard right angle BELLOWS GLOBE VALVE


1. The product is reasonable in structure, reliable in sealing, excellent in performance and beautiful in appearance.


2, sealing surface hardfacing Co based cemented carbide, wear resistance, corrosion resistance, good friction resistance, long service life.


3. The quenching and tempering of the valve stem and surface nitriding have good corrosion resistance and friction resistance.


4, double seal, more reliable performance.


5. The position of the stem is more direct.


6. Material of parts, flange and butt weld numbering dimensions can be reasonably selected according to actual working conditions or user requirements to meet various engineering needs.


Specification for German standard right angle BELLOWS GLOBE VALVES


結構形式
BB-BG-OS & Y
驅(qū)動方式
手動
電動
設計標準
DIN3356
結構長度
DIN3202
連接法蘭
DIN2543-2545
試驗和檢驗
DIN3230


Performance Specification for German standard right angle BELLOWS GLOBE VALVES


公稱壓力(MPa)
殼體試驗壓力(MPa)
密封試驗壓力(MPa)
適用溫度(℃)
使用介質(zhì)
1.6
2.4
1.76
≤350℃
水、蒸汽、油品等
2.5
3.75
2.75
4.0
6.0
4.4
6.4
9.6
7.04

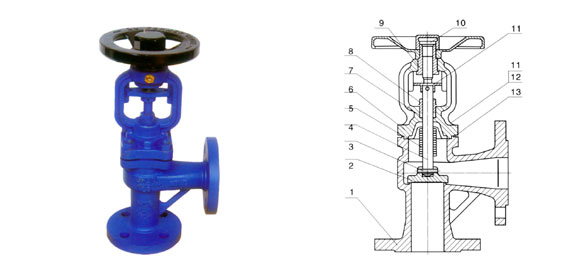

German standard right angle bellows globe valve main parts material
序號
名稱
材質(zhì)
1
閥體
GS-C25 1.7363、1.4308、1.4408、1.4306、1.4301
2
閥瓣
ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304、F316、F321、F304L、F316L
3
軸銷
ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304、F316、F321、F304L、F316L
4
閥桿
ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304、F316、F321、F304L、F316L
5
波紋管組件
1Cr18Ni9Ti、304、316
6
閥蓋
GS-C25 1.7363、1.4308、1.4408、1.4306、1.4301
7
填料
柔性石墨
8
填料壓蓋
GS-C25 1.7363、1.4308、1.4408、1.4306、1.4301
9
閥桿螺母
WCB、QT400-18
10
手輪
銅合金
11
雙頭螺栓
ASTM A193-B7、A320-B8、A193-B8M
12
六角螺母
ASTM A194-2H、A194-8、A194-8M
13
墊片
柔性石墨+不銹鋼

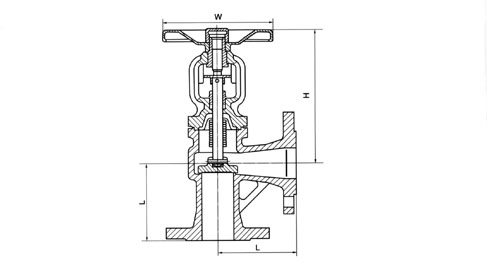

Main dimensions of German standard right angle BELLOWS GLOBE VALVES
型號
WJ44H-16
壓力等級
PN16
口徑
15
20
25
32
40
50
65
80
100
125
150
200
250
300
350
L
130
150
160
180
200
230
290
310
350
400
480
600
730
850
980
H
166
166
172
175
193
195
213
227
294
325
355
440
580
620
785
W
120
140
140
180
200
220
260
280
300
340
400
450
450
500
500
重量(kg)
4
5
6
10
13
18
25
30
40
50
100
180
300
450
670
型號
WJ44H-25
壓力等級
PN25
口徑
15
20
25
32
40
50
65
80
100
125
150
200
250
300
350
L
130
150
160
180
200
230
290
310
350
400
480
600
730
850
980
H
166
166
172
175
193
195
213
227
294
325
355
440
580
620
785
W
120
140
140
180
200
220
260
280
300
340
400
450
450
500
500
重量(kg)
4
5
6
11
14
19
27
32
43
53
110
200
330
480
700
型號
WJ44H-40
壓力等級
PN40
口徑
15
20
25
32
40
50
65
80
100
125
150
200
250
300
350
L
130
150
160
180
200
230
290
310
350
400
480
600
730
850
980
H
166
166
172
175
193
195
213
227
294
325
355
440
580
620
785
W
120
140
140
180
200
220
260
280
300
340
400
450
450
500
500
重量(kg)
4
5
6
11
14
20
28
33
45
55
120
210
350
500
730

The best quality, first-class service Qigao creates more value for you!

"Qigao Valve" expects to continuously improve service quality and strive for excellence. "Sincere service" is the eternal theme of "Qigao". "Qigao" strictly followsIS09001-2000 Quality system certification requirements, strict quality control, responsibility to people, to ensure the healthy operation of production, sales and service. Strengthen communication with users and provide quality products to our customers with perfection and perfect service. Hereby our factory makes the following commitments:

Product Standards:

Products in strict accordance with ChinaGB、HG Standard and USAPISuch as standard design, manufacturing, acceptance. The hardness of the sealing surface meets the requirements of the state and the width exceeds the national standard.

pre-sale service:

Product introduction, technical exchange, non-standard product design, troubleshooting。

Sale service:

A trustworthy contract guarantees timely delivery and keeps in touch with customers. For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" brand product quality period is from the factory12In the month, the implementation of the "three guarantees" service (return, replacement, warranty).

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions, so as to further improve product quality.

3、Respond quickly to the quality of user complaints, after-sales service personnel rushed to the scene in 24-36 hours (48 hours outside the province).

4、For after-sales service, users are required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of Qigao.

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us in advance to tell the required valve model, specification, quantity, delivery time and location, and timely transfer to the factory account according to the total 30% deposit or full payment. The rest of the payment is pending. Import before shipment to arrange delivery in time.



Order Process:

1、Customer purchase list fax to021-33872143,Or call us 021-33872141

2、Receive customer purchase list, provide valve model selection and quotation (price list)。

3、Specific agreement: delivery date, special requirements, etc.。

download Google:

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us first to tell the required valve model, specifications, quantity, delivery time and location, and press the total30%The deposit or full payment will be remitted to our factory account in time., The rest of the payment will be remitted before shipment to arrange delivery in time.。

Sale service:

Trustworthy contract, guarantee timely delivery, keep in touch with customers at any time。

For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" product quality period is from the factory12Month, practiceThree packsService (return, replacement, warranty)。

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions.,
In order to further improve product quality。

3、Respond quickly to the quality of user complaints, after-sales service personnel24-36Hours (outside the province48Hour) rushed to the scene。

4、For after-sales service, the user is required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of “Qigao”.。

statement

  1. All text, data and pictures in this article are for reference only.WJ44H German standard right angle BELLOWS GLOBE VALVEPlease contact us at 4000-700-665 for details of performance, size and price.
  2. If there is no explanation, this article is original, reprint, please indicate the address of this article, thank you for your cooperation!
