ZZYP self operated pressure regulating valve

ZZYP self operated pressure regulating valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

ZZY self-operated pressure regulating valve does not need additional energy. It uses the energy of the regulated medium itself as the power source, introduces the actuator to control the valve core position, changes the pressure difference and flow at both ends, and makes the pressure in front (or behind) of the valve stable. It has the advantages of sensitive action, good sealing and small fluctuation of pressure setting point. It is widely used in automatic control of gas, liquid and steam medium pressure reduction and pressure relief and pressure stabilization.

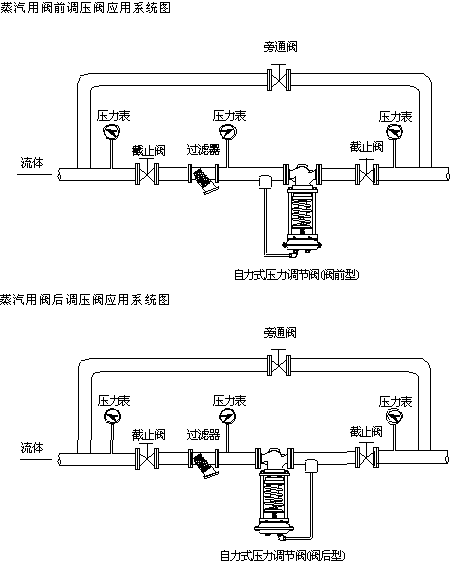

This series of products have single seat (ZZYP), sleeve (ZZYM), double seat (ZZYN) three structures; the actuator has film type, piston type two; action type with pressure relief valve after pressure regulation (type B) and pressure relief valve before pressure regulation (type K). The nominal pressure grade of the product is PN16, 40, 64; the valve body diameter range DN20-300; the leakage grade is grade II, grade IV and grade VI; the flow characteristic is fast opening; the pressure is regulated from 15-2500 kPa. It can meet user's requirements according to needs.


Characteristics of self operated pressure regulating valve


Self-powered pressure regulator can work in a place without electricity and gas without additional energy, which is convenient and energy-saving.


The pressure range is fine and intersecting, and the adjustment precision is high.


The pressure setting value can be continuously set during operation.


For pressure adjustment after valve, the ratio between front pressure and back pressure is 10:1~10:8.


Rubber diaphragm type detection, actuating mechanism has high detection accuracy and sensitive action.


The pressure balancing mechanism is adopted to make the control valve sensitive and precise.


Main parts material of self operated pressure regulating valve

valve body: zg230 - 450 zg1cr18ni9ti zgocr18ni12m02ti


spool: 1cr18ni9ti 0cr18ni12m02ti


valve seat: 1cr18ni9ti 0cr18ni12m02ti


Stem: 1cr18ni9ti 0cr18ni12m02ti


Membrane cover: a3 a3Steel coated with tetrafluoroethylene stainless steel


Filler: PTFE flexible graphite


Rubber diaphragm: butadiene, ethylene propylene, fluorine, oil resistant rubber


Main technical parameters of self operated pressure regulating valve


Nominal path DN(mm)
20
25
32
40
50
65
80
100
125
150
200
250
300
Rated discharge coefficient Kv
7
11
20
30
48
75
120
190
300
480
760
1100
1750
Rated travel (mm)
8
10
14
20
25
40
50
60
70
Nominal pressure PN(MPa)
1.6 、 4.0 、 6.4
Pressure regulating range (kPa)
15 ~ 50 40 ~ 80 60 ~ 100 80 ~ 140 120 ~ 180 160 ~ 220 200 ~ 260
240 ~ 300 280 ~ 350 330 ~ 400 380 ~ 450 430 ~ 500 480 ~ 560 540 ~ 620
600 ~ 700 680 ~ 800 780 ~ 900 880 ~ 1000 950 ~ 1500 1000 ~ 2500
Flow characteristics
Fast open
Adjustment precision ( % )
± 5
Use of temperature ( ℃ )
≤ 350
Allow Leakage
Hard seal (l/h)
Single seat: less than 10-4 valve rated capacity (grade IV); double seat, sleeve less than 5X10 -3 valve rated capacity (II level)
Soft seal (ml/h)
0.15
0.30
0.45
0.60
0.90
1.7
4.0
6.75
11.10
16.0
Pressure reduction ratio
Maximum
10
Minimum
1.25


Main dimensions of self operated pressure regulating valves


Nominal path 0N
20
25
32
40
50
65
80
100
125
150
200
250
300
Flange nozzle size B
383
512
603
862
1023
1380
1800
2000
2200
Flange end face distance L
150
160
180
200
230
290
310
350
400
480
600
730
850
Pressure Force Tune Section Fan around
kPa
15 一 140
H
475
520
540
710
780
840
880
915
940
1000
A
280
308
280 — 500
H
455
500
520
690
760
800
870
880
900
950
A
230
120 — 300
H
450
490
510
680
750
790
860
870
890
940
A
176
194
280
480 — 1000
H
445
480
670
740
780
850
860
880
930
A
176
194
280
600 一 1500
H
445
570
600
820
890
950
1000
1100
1200
A
85
96
1000 — 2500
H
445
570
600
820
890
950
1000
1100
1200
A
85
96
weight kg
26
37
42
72
90
114
130
144
180
200
250
Guide pipe nipple thread
M16X1.5


The best quality, first-class service Qigao creates more value for you!

"Qigao Valve" expects to continuously improve service quality and strive for excellence. "Sincere service" is the eternal theme of "Qigao". "Qigao" strictly followsIS09001-2000 Quality system certification requirements, strict quality control, responsibility to people, to ensure the healthy operation of production, sales and service. Strengthen communication with users and provide quality products to our customers with perfection and perfect service. Hereby our factory makes the following commitments:

Product Standards:

Products in strict accordance with ChinaGB、HG Standard and USAPISuch as standard design, manufacturing, acceptance. The hardness of the sealing surface meets the requirements of the state and the width exceeds the national standard.

pre-sale service:

Product introduction, technical exchange, non-standard product design, troubleshooting。

Sale service:

A trustworthy contract guarantees timely delivery and keeps in touch with customers. For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" brand product quality period is from the factory12In the month, the implementation of the "three guarantees" service (return, replacement, warranty).

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions, so as to further improve product quality.

3、Respond quickly to the quality of user complaints, after-sales service personnel rushed to the scene in 24-36 hours (48 hours outside the province).

4、For after-sales service, users are required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of Qigao.

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us in advance to tell the required valve model, specification, quantity, delivery time and location, and timely transfer to the factory account according to the total 30% deposit or full payment. The rest of the payment is pending. Import before shipment to arrange delivery in time.



Order Process:

1、Customer purchase list fax to021-33872143,Or call us 021-33872141

2、Receive customer purchase list, provide valve model selection and quotation (price list)。

3、Specific agreement: delivery date, special requirements, etc.。

download Google:

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us first to tell the required valve model, specifications, quantity, delivery time and location, and press the total30%The deposit or full payment will be remitted to our factory account in time., The rest of the payment will be remitted before shipment to arrange delivery in time.。

Sale service:

Trustworthy contract, guarantee timely delivery, keep in touch with customers at any time。

For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" product quality period is from the factory12Month, practiceThree packsService (return, replacement, warranty)。

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions.,
In order to further improve product quality。

3、Respond quickly to the quality of user complaints, after-sales service personnel24-36Hours (outside the province48Hour) rushed to the scene。

4、For after-sales service, the user is required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of “Qigao”.。

statement

  1. All text, data and pictures in this article are for reference only.ZZYP self operated pressure regulating valvePlease contact us at 4000-700-665 for details of performance, size and price.
  2. If there is no explanation, this article is original, reprint, please indicate the address of this article, thank you for your cooperation!
