200P adjustable pressure reducing valve
- sell：021-32051999
- sell：021-32050777
- fax：021-66099555
Details
- Product Introduction
- Service Promise
- Ordering Process
The 200P adjustable pressure relief valve is a direct adjustable pressure relief valve. It adopts diaphragm type hydraulic operation mode and can be installed horizontally or vertically in water supply, fire fighting system or other clean water system. Within a certain range of flow, the outlet pressure of the valve can be controlled as a relative fixed value.
Model 200P is a pressure reducing valve with internal thread connection. It is compact and easy to install. It is equipped with a built-in filter screen. It is convenient to install and operate as a whole, avoiding jam and making it more safe and reliable.
Main technical parameters
公稱壓力(Mpa) | 1.0 | 1.6 |
殼體度驗壓力(Mpa) | 1.5 | 2.4 |
密封試驗壓力(Mpa) | 1.0 | 1.6 |
MAX進口壓力(Mpa) | 1.0 | 1.6 |
出口壓力范圍(Mpa) | 0.09-0.8 | 0.1-1.2 |
壓力特性偏差(Mpa) | GB12244-1989 | |
流量特性偏差(Mpa) | GB12244-1989 | |
滲漏量 | 0 | |
工作溫度 | 0℃-80℃ | |
零件名稱 | 零件材料 |
閥體、閥蓋 | 銅合金 |
閥座 | H62 |
閥瓣 | H62 |
閥桿 | H62 |
Ｏ型圈 | 丁腈橡膠 |
密封圈 | 丁腈橡膠 |
膜片 | 夾織物丁腈橡膠 |
調節彈簧 | 60Si2Mn |
過濾器 | 不銹鋼 |
DN | 15 | 20 | 25 | 32 | 40 | 50 |
Cv | 0.5 | 0.6 | 1.2 | 1.8 | 3.0 | 5.0 |

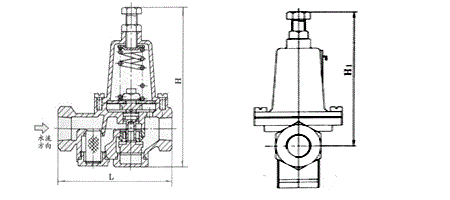

DN | G | L | H1 | H | D |
15(1/2") | G1/2" | 112 | 40 | 150 | 75 |
20(3/4") | G3-4" | 140 | 55 | 190 | 90 |
25(1") | G1" | 140 | 55 | 195 | 90 |
32(1-1/4") | G1-1/4" | 165 | 55 | 212 | 98 |
40(1-1/2") | G1-1/4" | 190 | 55 | 215 | 98 |
50(2") | G2" | 200 | 65 | 265 | 120 |
